Shaving machines - G.B.L. - RC

On request

Basic Information

Brand : G.B.L.
Model : RC

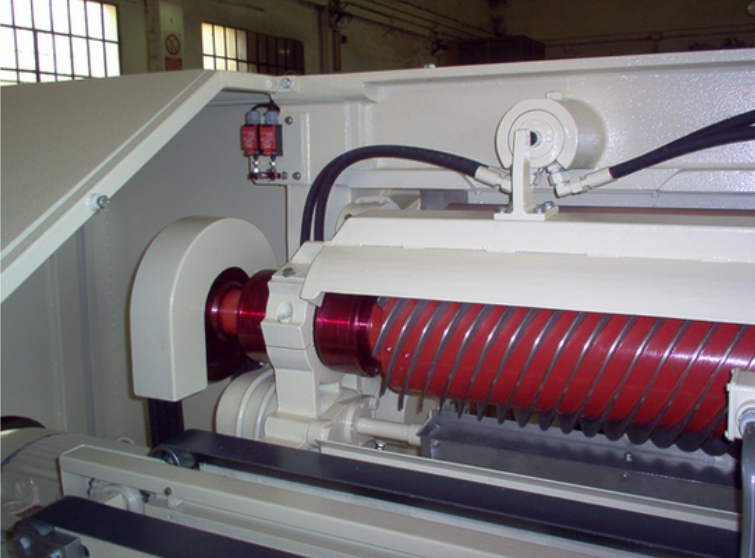

Description : The very heavy and stout structure of the side frames and of the cast iron traverses, the closed frame and the blade cylinder's stability allow us to offer a shaving machine for sole leather which is ideal for processing vegetable tanned butts, bends
Read more
and shoulders. The main features of the machine are:
-Fully hydraulic engineering of the following operations:
1. Opening and closing;
2. Speed of rotation of the transport roller adjustable in continuous mode from 0 to 30 m/1';
3. Basic setting up of the working thickness;
4. Quick trimming device which allows to adjust the thickness during the working stage within a range of 2mm (from +10 to -10) ;
5. Fan rotation;
6. Smooth movement of the grinder carriage with adjustable speed;
7. Quick return device (on demand);
-Availability of continuous grinding or by single step;
-Automatic removal of the wheel from the blade cylinder during the hide's passage;
-Automatic increment of the grinding wheel in order to close the gap;
-Grinding system on ground and protected prismatic guides;
-Quick change of parallelism between the support cylinder and the blade cylinder;
-Electronic balancing of the blade cylinder;
-Leather feed-in area protected by a certified safety photoelectric device which prevents the machine from closing when the ray is darkened;
-Safety table which protects the entire working area;
-The machine is provided with casings which protect all its moving parts;
-The electrical equipment is placed in a watertight control cabinet in compliance with the safety standards;
The machine complies with CE standards;
OPTIONAL EXTRAS AVAILABLE ON REQUEST:
1. Rubber support roller for cleaning the hide and not for splitting it;
2. Support roller's reversing device to enable a quick return of the hide;
3. Hoods for suction and discharge of leather powder and emery dust, exclusive of pipes and electroaspirators;
4. Conveyor belt for shavings collection.

Detailed information

Condition : New

Contact Information Visit profile

Company : G.B.L.
Via A. Gramsci 145 P.o. Box 26
56024 Ponte a Egola (PI) Italy
Contact Person : Alberto Campinoti
