Available in the following working dimensions:

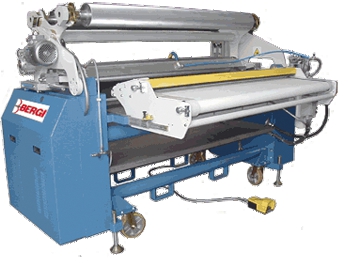

Synchro roller coater for tipping and design effects with double introduction conveyor.
- Double introduction conveyor, fixed on the machine and extratable.
- The doctor blade group (opening and closing pneumatically operated) is fixed on to the mobile structure of the coating roller. Its position can also be manually regulated, in order to vary the contact angle of the doctor blade with the coating roller.
- The doctor blade oscillating device is directly controlled by gearmotor with an eccentric which grants its smooth movement.
- Transport conveyor is anti-oil and anti-acid rubber. This transport conveyor can be grinded more times in order to guarantee a precise working.
- Roller changing system with pneumatic movement, manual rotation and rapid clutch (less than 30 seconds per change).
- Electronic speed control of the coating roller and transport conveyor with digital display on control panel.
- Centesimal digital display of working thickness (to one hundred of a mm). The working thickness on the right and on the left hand side can be set independently.
- Leather introduction table and pigment recycling trays both in stainless steel.
- Rollers changing system for 1,2,3 or 4 rollers.
